General Description

The KVM Extender consists of a computer unit and a station unit that is suitable to locate a keyboard/monitor/mouse set up to 150 metres away from a computer or KVM switch using category 5 cable. It provides an ideal and convenient way to remotely access the computer which is located in a secure, clean or dirty, harsh environment.

Features & Benefits

• Connects the Computer Unit and Station Unit via Category 5 UTP cable
• Remotely locates the keyboard, mouse and monitor up to 150m from a computer
• Video compensation can be adjusted by hotkey to ensure the optimum signal quality for any length of cable within the limit
• Simple indication makes operation user-friendly
• Locates the computer away from your desk and work area, saving you valuable space
• Allows two users to share a single computer both in local and remote areas.
• Applicable for one console to manage two computers locally and remotely
• Supports for standard PS/2 keyboard & mice, including Microsoft IntelliMouse
• Compatible with XGA, VGA, and SVGA system

Package Contents

• 1 x EK-12S (Station Unit)
• 1 x EKP-21P (Computer Unit)
• 1 x Power Adapter
• 1 x User's Manual
• 2 x Foot Pad sets
• 2 x PS/2 KVM cable

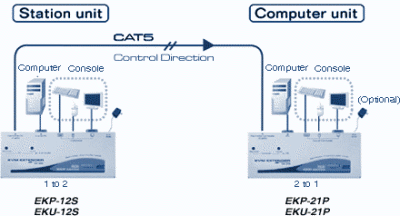

Typical Usage Diagram
