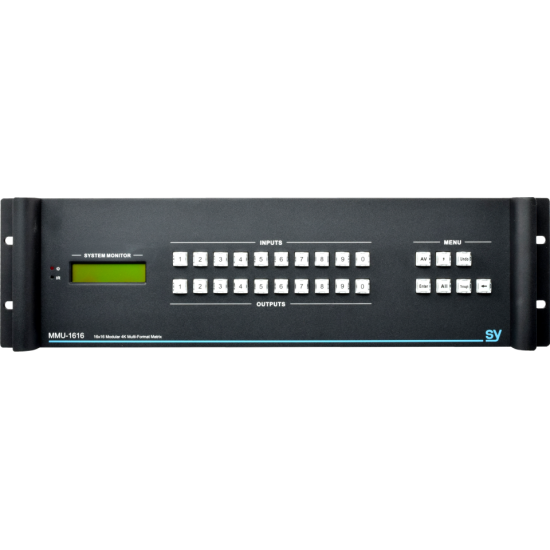

SY Electronics SY-MMU-1616 4K UHD 16x16 Modular Multi-Format Matrix Front Panel Control IR RS232

The SY Electronics SY-MMU-1616 is a modular multi-format matrix with 4 input slots & 4 output slots. It supports digital and analogue signal cards and is HDCP Compliant.

The unit is 4U rack mountable and features RS232 and TCP/IP control and integral 110/230V redundant power supply.

SY MMU series provides the widest range of connections all within one chassis, offering a high-performance customisable matrix switching platform.

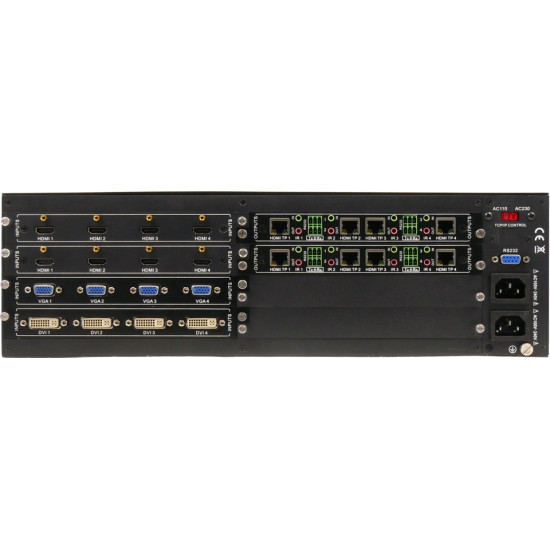

Choose any combination of input and output HDMI (HD/4K), HDbaseT (4K/HD) UHD fibre, DVI, SDI, VGA plus various audio I/O.

Populate the right number of inputs and outputs to meet the requirements of each specific project by upgrading and replacing inputs and outputs cards.

With LAN, IR and RS232, the unit is easy to control and ready for connection to SY control panels.

• 16 x 16 Chassis (4K UHD)
• Multi-format Transcoding Matrix
• UHD HDMI I/Os
• HDBaseT I/Os
• UHD Fibre I/Os
• DVI Seamless I/Os
• VGA I/Os
• DVI I/Os
• SDI I/Os
• RS232 Control
• Front Panel Control
• Infrared Control
• EDID Management
• HDCP 1.4 Compliant
• Pixel accurate re-clocking
• Hot-swappable
• Rackmount Chassis
• Internal PSU
• Data rate 10.2 Gbps
