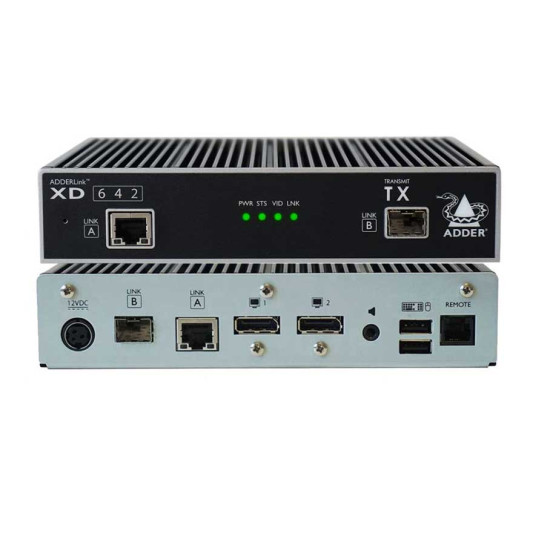

ADDERLink® XD642P-DP A high-resolution, dual-head KVM extender with DisplayPort connectivity.

A high-resolution, dual-head KVM extender with DisplayPort connectivity. Ultra-high definition 4K60 video, transparent full-speed USB2.0 and audio are transmitted on a single CATx or fiber cable.

• Dual-Head DCI 4K60 Video -Supports Dual-head 4096x2160@60Hz (DCI 4K60) with 24-bit colour and 4:4:4 chroma. A fiber connection is required for dual 4K60 operation, however dual 2560 × 1600@60Hz is supported over CATx cable.
• Up to 4km Extension - Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
• Emulated and Hi-Speed USB 2.0 - USB 2.0 emulation ensures reliable connection of full and low speed HID devices (mouse or keyboard). Mass storage devices and isochronous devices, such as webcams and audio headsets can also be used through the transparent USB 2.0 Hi-Speed port.
• Plug and Play - Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
• Digital Audio over DisplayPort - Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection.
• Analogue Audio - Plug analogue line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analogue or USB connection to the host.
• Monitor Compatibility - EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatibility.
• Serial communications - RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control.
