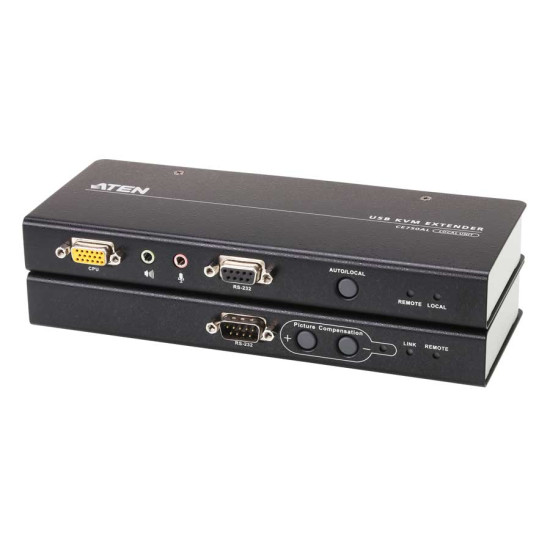

Aten CE750A USB VGA/Audio Cat 5 KVM Extender

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse)

• Local and Remote units connect at distances up to 200 meters using Cat 5e cable
• Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Built in ASIC for greater reliability and compatibility
• USB keyboard and USB mouse ports
• RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
• USB overcurrent detection and prevention
• Push button operation mode selection (local unit only) – select between Local and Auto operating modes
• Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
• Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
• High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
• Rack mountable
• Easy to install – no software required, simply connect cables to the devices
• Supports wide screen formats*
