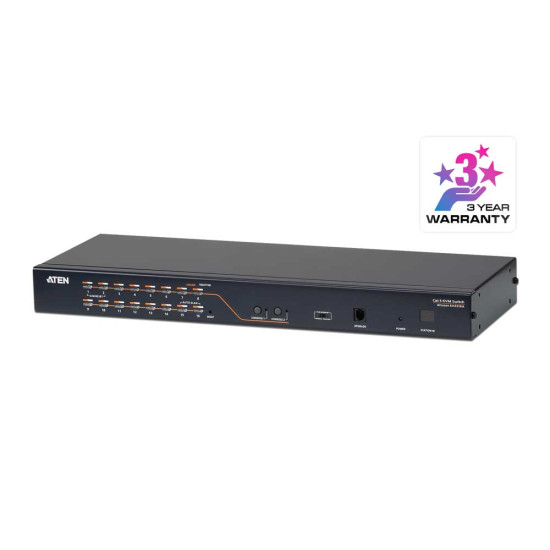

KH2516A - 2Console 16 Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

The KH2516A allow IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 15 additional switches, as many as 256 computers can be controlled from the original KVM consoles.

• Two KVM consoles independently and simultaneously control up to 16 directly connected computers
• By daisy chaining up to 31 additional KH2508A / KH2516A switches, as many as 512 computers can be controlled from the original KVM console
• Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
• Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 metres, 1600 x 1200 @60Hz for up to 40 metres, and 1280 x 1024 @75Hz for up to 50 metres
• OSD Backup/Restore function – enables the administrator to back up the switch’s configuration and user profile information
• Configure port access rights for users on a port - by - port basis
• Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Multiplatform support – Windows, Linux, Mac and Sun
• Compatible with ATEN KVM adapter cables — allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
• Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
• Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
• Adapter ID
• Firmware Upgradeable
