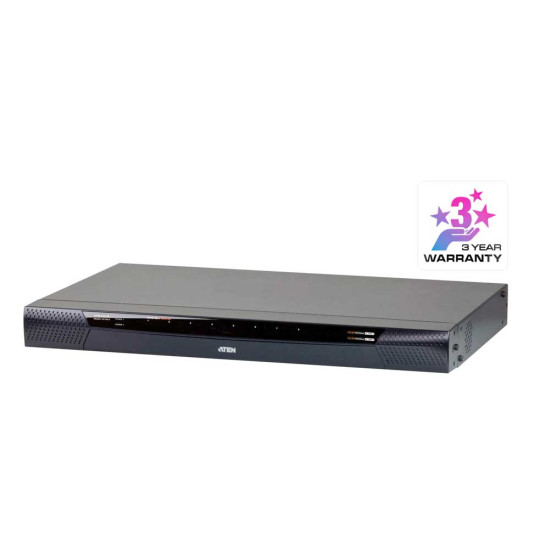

KN1108VA - 1-Local/1-Remote Access 8-Port Cat 5 KVM over IP Switch with Virtual Media

KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

• Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
• Two separate buses for one local console access and one remote over IP access
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Audio enabled
• Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
• Dual Power Supply
• High video resolution – up to 1920 x 1200 @ 60Hz for local and remote sessions
• Monitor and control up to 8 computers on a single level, or control up to 128 computers in a cascade
• Up to 64 user accounts
• UP to 32 concurrent logins
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Panel Array Mode available to both local console operators and remote access users
• Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
• High-grade security – supports TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure users log in from browser
• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
• IP/MAC Filter for enhanced security protection
• Configurable user and group permissions for server access and control
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• Works with USB enabled servers in operating system and BIOS level
• Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full screen video display or scalable video display
• Message Board for communication among remote users
• Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
• Keyboard pass through support
• Exit Macros support
• On-screen keyboard with multilanguage support
• BIOS-level access
