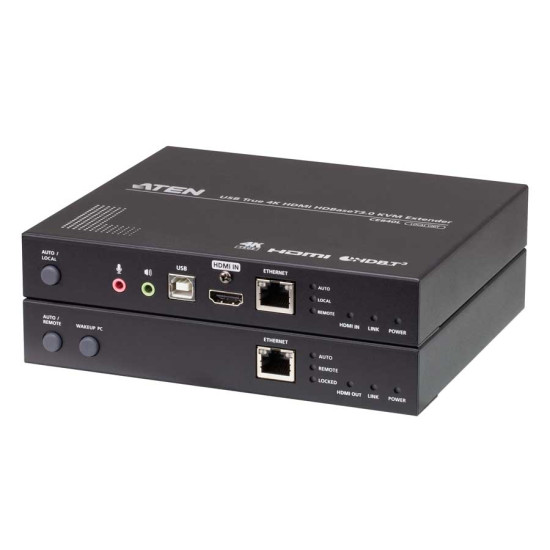

Aten CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable

• HDBaseT 3.0 – supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-29330 Cat 6A Cable recommended) or above with no compression and zero latency
• Superior video quality – supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
• HDBaseT™ long reach mode up to 1080P @ 150 m*
• Long reach mode switch – switches between HDBaseT™ Standard and long reach modes in a snap*
• Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
• Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
• Flexible 4 x USB 2.0 extension - each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
• Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• HDCP2.3 and 2.2 compliant
• Supports widescreen formats
• Built-in 8KV/15KV ESD protection
• Firmware upgradable
• No software or driver installation required
• Rack-mountable

Note:

1. The long reach mode is only supported by CE840 using firmware version v1.0.064m or later.

2. When the long reach mode switch is switched and turned on, the CE840 will reboot itself to activate the long reach mode
