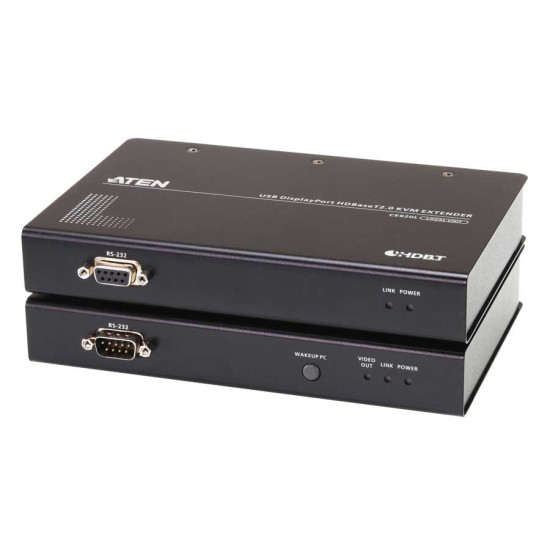

Aten CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 m using a single Cat 6 / 2L-2910 Cat 6 cable

• Supports HDBaseT 2.0 technology - Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat 6 / 6a / 2L-2910 Cat 6 cable - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions - Status detection and LED indication for HDBaseT signal transmission on remote unit
• EDID Buffer for smooth power-up and the highest quality display
• HDCP compatible • Long distance with superior video quality - HDBaseT Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910) - HDBaseT Long-Reach mode up to 1080p @ 150 m
• Long-Reach mode switch – switches between HDBaseT Standard and Long-Reach modes in a snap
• USB 2.0 full speed ports – ensure fast transmission speeds for peripherals
• Supports individual 2-channel stereo audio for high-quality audio applications
• Supports PC wakeup function via single pushbutton through RS-232 channel2
• Built-in 8 KV / 15 KV ESD protection (Contact voltage 8 KV; Air voltage 15 KV)

Note:

1. The function is supported by CE920-AT only.

2. The computer has to support Wake Up Ring for this function to work
