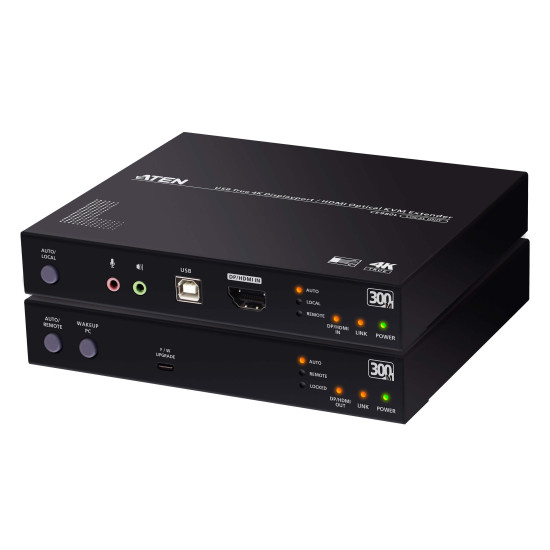

CE980 - USB True 4K Displayport/HDMI Optical KVM 300m

The ATEN CE980 is a USB DisplayPort/HDMI Optical KVM Extender that extends KVM signals over fibre-optic transmission up to 300 meters, delivering True 4K, HDCP 2.3-compliant video quality. It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles. In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fibre optic connection. The CE980 is ideal for critical control environments such as healthcare, post production, manufacturing, and more.

Features:

• DisplayPort/HDMI combo connector supports both DisplayPort and HDMI video interfaces

• Extends DisplayPort/HDMI video, keyboard/mouse control, stereo/embedded audio, RS-232 control, and USB 2.0 signals over fibre optic cabling

• Ultra-long distance transmission up to 300m

• Supports True 4K video up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2/2.3 compliance

• Supports HDR10 for enhanced video quality

• Dual console operation – supports local and remote system control with configurable privilege modes (Auto/Local and Auto/Remote) for streamlined access management and operational efficiency

• USB 2.0 Hub – supports 2 ports for USB KB/MS and 2 ports for other USB peripherals

• Easily switch EDID priority between Local and Remote via hotkey

• Supports wide screen format

• Supports dual independent stereo audio – mic and speaker

• Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

• Works with SFP Module 2A-141G (300 m, multi-mode) to offer 10Gbps transmission via a single fibre cable

• 2X-EA17 HDMI Lock Pro for combo connector to secure HDMI cables to selected devices and prevent signal loss caused by the connector detaching

• PC wakeup function via a single pushbutton through RS-232 channel

• Plug-and-play operation with no software or driver required

• DC Jack with screw-lock ensures stable and secure connection

• Built-in 8KV/15KV ESD protection

• Rack-mountable

• Firmware upgradeable
