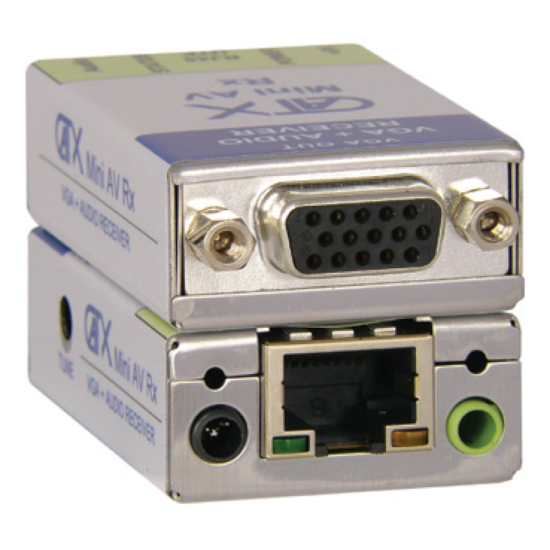

CX-0M-AV-R - CatX Mini AV Rx VGA and Audio Receiver Unit - 150M

The SY Electronics CX-0M-AV-R CatX Mini AV Rx Unit is the same size as the CatX Mini AV Tx, powered from a local 5VDC power supply. Continuous adjustability ensures perfect picture at any distance up to 150m.

All CatX AV Units are compatible with all CatX Mini and CatX AVP Transmitters/Receivers. Considered as the smallest VGA cat5 extender system in the market, the small size of the CatX Mini AV units ensures discrete connection to the VGA source and output display; perfect for installations with limited space.

• Compact - CatX Mini Units are similar size to a VGA Connector.
• Low Cost - CatX Mini can eliminate the use of expensive VGA Cables.
• Low Power - Only the CatX Mini AV Rx requires an External Power Supply.
• Easy Installation - The CatX Mini Units fit directly to the VGA Connector
• Zero footprint

• Inputs 1x RJ45 UTP Connector
• Outputs 1x HD15 VGA (male), 3.5mm Stereo Jack Socket
• Video levels RGB: 0.7V into 75R, HV: TTL compatible
• Video format VGA – UXGA compatible 1080p HD compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported. Separate or Composite HV; Horizontal 15-135kHz; Vertical 25-150Hz Distance vs resolution 1024x768 / 1280x1024 (PC) and 1280x720p / 1368x768p (HDTV) - up to 150m max; 1600x1200 (PC) and 1920x1080p (HDTV) - up to 120m max; 2048x1536 (PC) - up to 40m max
• Distance quote above based on a 60Hz refresh rate with certified Cat5e UTP
