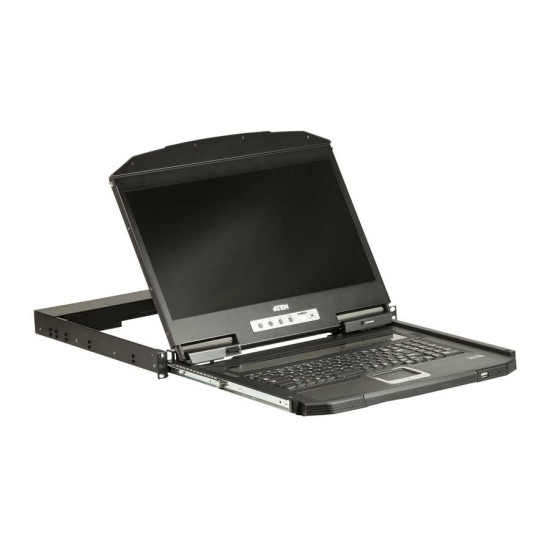

CL5716M 16-Port PS/2-USB VGA Single Rail 17" LCD KVM Switch

The CL5716M Slideaway™ LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 256 / 512 computers can all be controlled from a single KVM console.

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
• Integrated KVM console with 17” LED-backlit LCD monitor in a Slideaway™ housing
• Available with or without fingerprint identification reader
• Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
• Daisy-chain up to 31 additional units – controls up to512 computers from a single console.
• Dual interface – supports computers and console with PS/2 or USB keyboards and mice
• USB port allows each computer to access USB peripherals2 (inapplicable to CL5708MW / CL5716MW)
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
• Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708FM / CL5708N / CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5708MW / CL5716MW)
• No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
• Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Port names automatically reconfigured when station sequence is changed
• Two level password security – only authorized users can view and control computers • Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable
• Beeper on / off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
• Optional rack mount kits available including easy installation options
