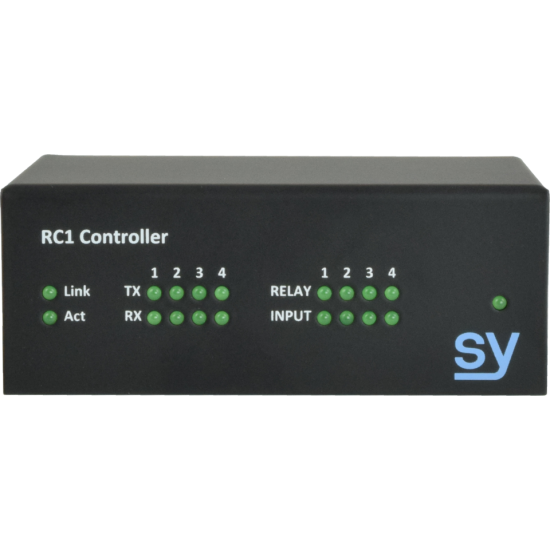

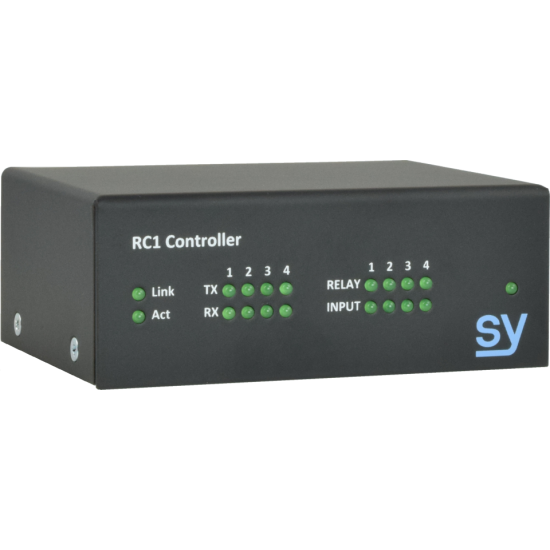

SY Electronics SY-RC1 Compact Controller with Ethernet

The SY Electronics SY-RC1 is a compact controller with Ethernet and can be used as a stand-alone control system or as an expander to provide remote or extra connectivity for Keypads. Intuitively programmed through SY Device Suite, it takes minutes to configure a complete system and offer all the functionality, plus more, of a Keypad but without the buttons.

The SY RC1 Compact Controller provides a complete easy to install control system for media displays and associated equipment control.

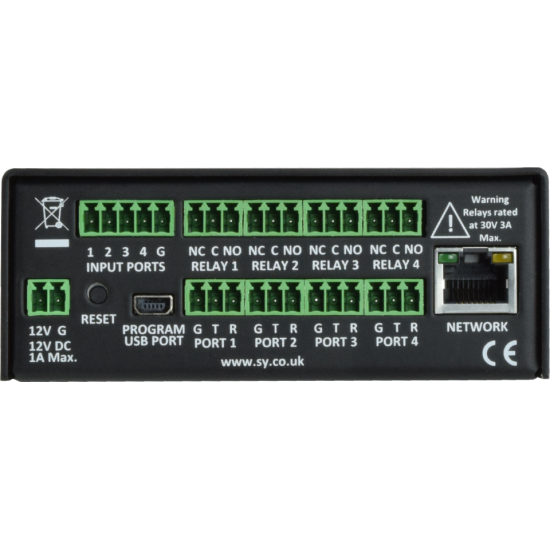

The SY RC1 Compact Controller feature bi-directional serial or infra-red ports, input detection ports, relay ports, USB configuration, and low voltage power making them the most powerful devices available in their class. The SY Device Suite software provides a powerful yet easy-to-use tool for configuring the SY RC1 Compact Controller to respond just the way you want.

Features:

• Powerful Compact Controller
• Create Macros
• 4 Bi-directional RS232/IR Ports
• 4 Input Ports
• 4 Relays
• Network on-board
• Control of 20 Ethernet devices
• Scheduled Events
• Trigger Macros from Keypads, Web GUI, Scheduling, Input Ports, Conditional Scripts or other
• Control Systems
• Program via USB and Network
• Rackmount with SY-RS-01 Universal Rack Shelf
