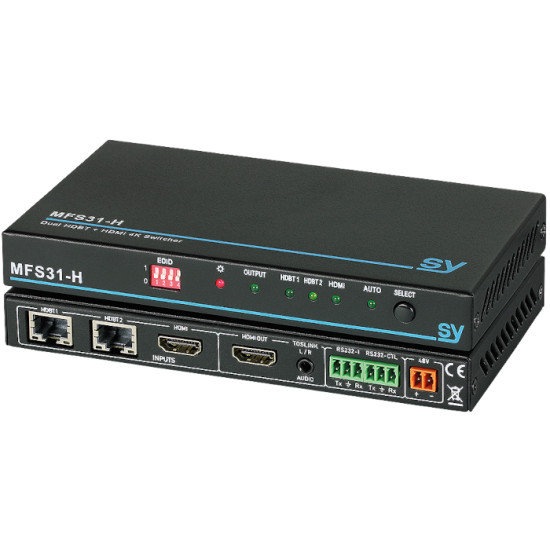

SY-MFS31-H - Multi-format Triple Input Switcher with 2x HDBaseT Inputs, 1x HDMI Input and 1x HDMI Output

The SY Electronics SY-MFS31-H is a 3x1 Multi Input Switch and has 2x HDBaseT Inputs as well as 1x HMDI v2.0 input.  This allows for the input of 2x remote sources from other rooms, which can then be selected to output to the single HDMI v2.0 output.  Remote SY HDBaseT transmitters can be connected and powered from the device allowing for video reception from up to 70M @1080P or 40M @4K.

Features:

• ​2x iPOC HDBaseT Inputs

• Receives signals up to 70M @1080P or 40M @4K

• 1x HDMI Input 4K60 4:4:4

• 1x HDMI Output 4K60 4:4:4

• Auto or Manual Switching

• Colour Space Down Scaling

• Resolution Down Scaling

• De-embedded Audio

• EDID Management

• HDCP Control

• Hot Plug Detect Toggle

• VKA

• Test Pattern Generator

• CEC

• Bi-directional RS232 control

• Temperature Safety Shutdown

• Full On-board Diagnostics
