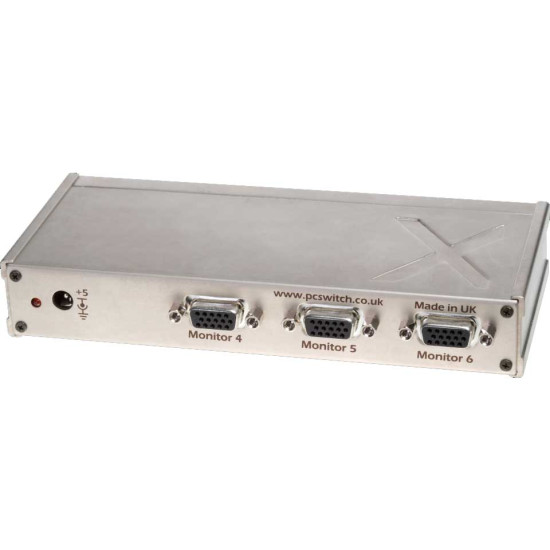

CX-0S-VGAL-6 - VGA 6-Way Lite Splitter (70M)

The SY Electronics CX-0S-VGAL-6 is a 6-Way VGA Lite Splitter catering for solutions up to 70m.

The VGA6X Lite provides high-quality video to a maximum of six VGA Video Display Devices up to a distance of 65m.

For the best results use only high-quality VGA Cable.

The cascade feature allows additional VGA Splitters to connect to any VGA Output.

Each VGA6X Lite requires a 5V External PSU, consuming less than 0.75W during normal use.

• Inputs : 1x HD15 Male VGA, 1x 5V 2.1mm DC Socket
• Outputs : 6x HD15 Female VGA
• Video levels : RGB: 0.7V into 75R, HV: TTL compatible
• Video format : VGA – UXGA compatible 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported Separate or Composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
• Max resolution : dependent on length and specification of SVGA Cable
